Round End Milling Machine For Broom Sticks

Round End Milling Machine For Broom Sticks

MOQ:1
Brand:GELGOOG MACHINERY
Certification: CE
Supply Ability: 100
PAY METHOD: WEST UNION L/C T/T CASH
Warranty Time: 12 Months
LOADING PORT: Shanghai port/Qingdao port
Country Of Origin: China

Live Chat

Send Email

Application

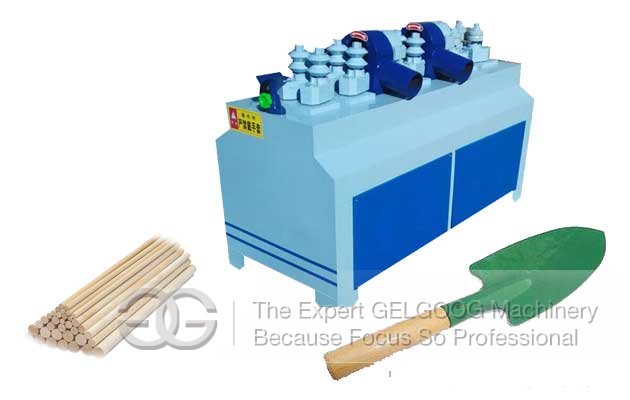

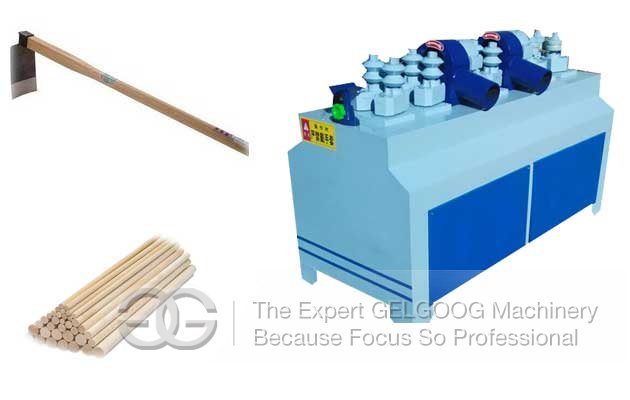

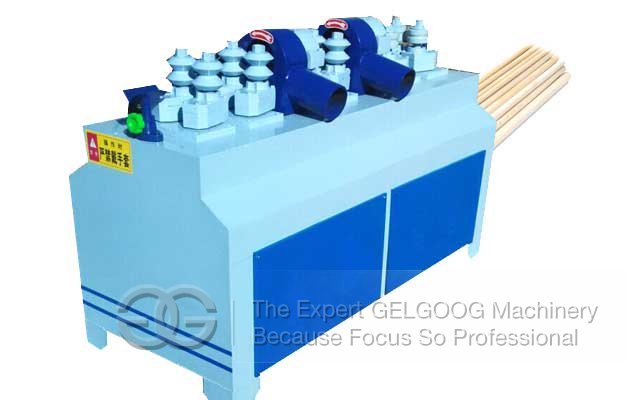

This round end milling machine for broom sticks can produce round wood stick.the machine with double feeding and double discharging.

Main Feature

This round end milling machine for broom sticks can produce round wood stick.the machine with double feeding and double discharging.

Features

This round end milling machine for broom sticks can produce round wood stick.the machine with double feeding and double discharging.

This round end milling machine for broom sticks is mainly used for processing slender wood and wood core material.according to the requirements of processing. This machine is a wood round bar processing equipment.

Feature:

1. Wide range of materials available for stock and round stock.

2. with smooth surface.the output round bar and sanding effect is similar.by changing the speed.we can saving the sanding process.

3. Production efficiency.its the fastest up to 18 m / min.according to the needs of customers.one-time design of more round bars.

round end milling machine for broom sticks

round end milling machine for broom sticks

Technical Data

Model	GGMC90-80C	Remark
Main motor power	4kw+4kw
Feeding motor power	0.75kw
Worm wheel deceletator	50:1
Spindle velocity	4000r/min
Feeding speed	3/5m/min	Double pulley gear
Cutting diameter	20-80mm	Select square section material, or raw wood
Front Max cutting quantity	6mm(Semi-diameter)
Back Max cutting quantity	2mm(Semi-diameter)
Min.working length	1000mm
Overall dimension	1870x610x1100mm
Machine weight	620kg
