Bamboo Toothpick Production Line
Bamboo Toothpick Production Line
- MOQ:1
- Brand:GELGOOG MACHINERY
- Certification: CE
- Supply Ability: 100
- PAY METHOD: WEST UNION L/C T/T CASH
- Warranty Time: 12 Months
- LOADING PORT: Qingdao port
- Country Of Origin: China
Application
The bamboo toothpick processing machine used for making bamboo toothpick.
Main Feature
We also match the machine according to clients’ need.
Features

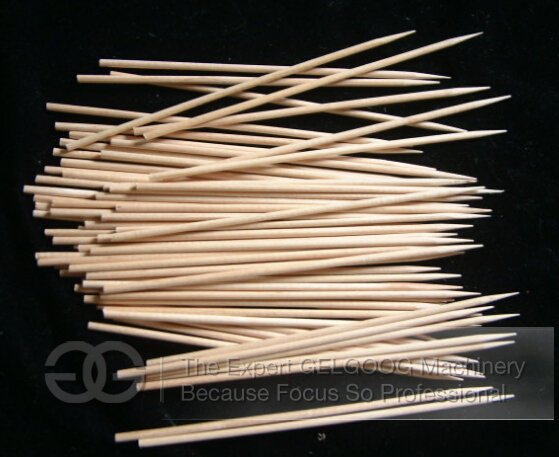

The final product of this Bamboo Toothpick Production Line is diameter 2.2mm wideth and the length 65mm with two sharpened ends.The capacity is 600000 pcs/8 hours.We also match the machine according to clients’ need.
Every 100 kilograms of fresh bamboo (wet), usually can produce diameter 2.0 140000 x 65 mm specifications of toothpick, about dry finished toothpicks 18 kg. Just need 5 ~ 7 machinery operators , men and women both ok. Industrial electric power with 380 v, the normal production of the actual power consumption per hour around 12 degrees. If you add 4, 9 machines,the production will be 3 million.
Procedure
bamboo - picking sawing - cutting bamboo stick - section open piece of fixed width into silk, bleaching, drying, cutting off - length - polishing - neat - remove the defect to sign - nib - remove the defect sign, packaging, warehousing (factory)
There is bamboo toothpick production line working video

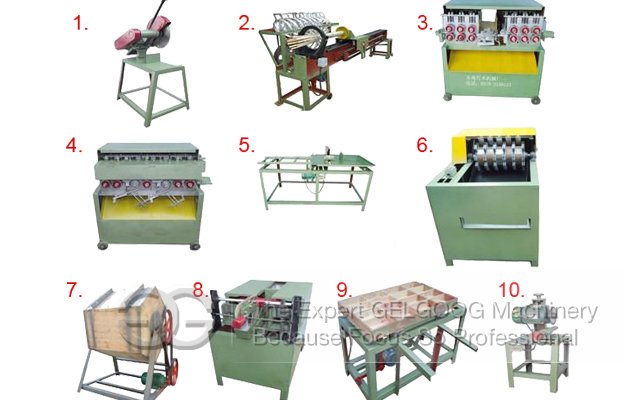

Technical Data
| NO. | Name |
Power (kw) |
Weight (kg) | Size(mm) |

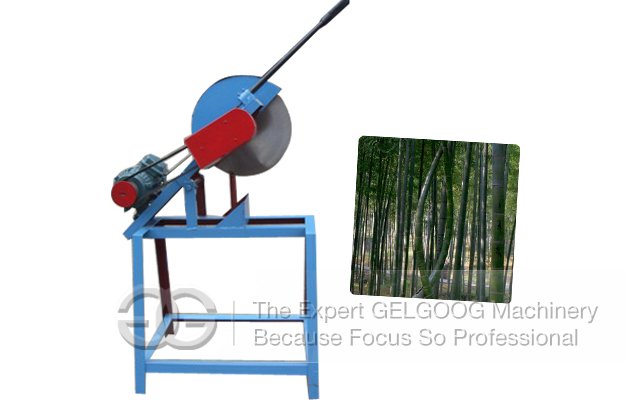

| 1 | Bamboo sawing machine | 1.5 | 65 | 900*510*930 |
| 2 | Bamboo dissection machine | 3.0 | 630 | 3000*850*1200 |
| 3 | Bombined flaker | 3.7 | 450 | 1460*660*1000 |
| 4 | Bamboo filament shaping machine | 9.1 | 450 | 1050*650*990 |
| 5 | Bamboo filament set-size machine | 0.75 | 85 | 1500*650*990 |
| 6 | Polishing machine | 1.5 | 120 | 1050*1050*1200 |
| 7 | Toothpick set-size machine | 2.75 | 240 | 900*700*950 |
| 8 | Toothpick finishing machine | 0.55 | 70 | 1050*900*850 |
| 9 | Toothpick sharpened machine | 1.65 | 260 | 950*650*1050 |
| 10 |
Knife Sharpener |
0.55 | 50 | 370*330*720 |
FAQ
| NO. | Name |
Power (kw) |
Weight (kg) | Size(mm) |
| 1 | Bamboo sawing machine | 1.5 | 65 | 900*510*930 |
| 2 | Bamboo dissection machine | 3.0 | 630 | 3000*850*1200 |
| 3 | Bombined flaker | 3.7 | 450 | 1460*660*1000 |
| 4 | Bamboo filament shaping machine | 9.1 | 450 | 1050*650*990 |
| 5 | Bamboo filament set-size machine | 0.75 | 85 | 1500*650*990 |
| 6 | Polishing machine | 1.5 | 120 | 1050*1050*1200 |
| 7 | Toothpick set-size machine | 2.75 | 240 | 900*700*950 |
| 8 | Toothpick finishing machine | 0.55 | 70 | 1050*900*850 |
| 9 | Toothpick sharpened machine | 1.65 | 260 | 950*650*1050 |
| 10 |
Knife Sharpener |
0.55 | 50 | 370*330*720 |
