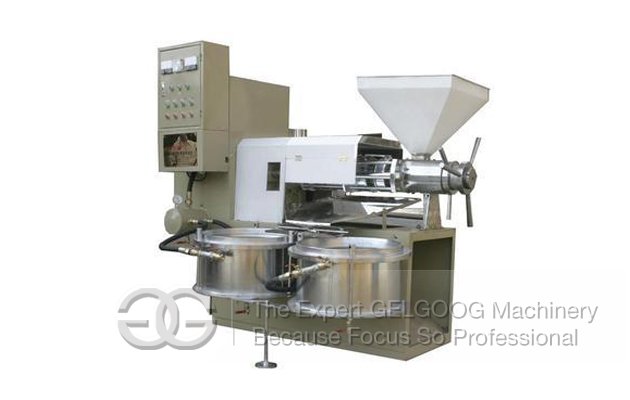

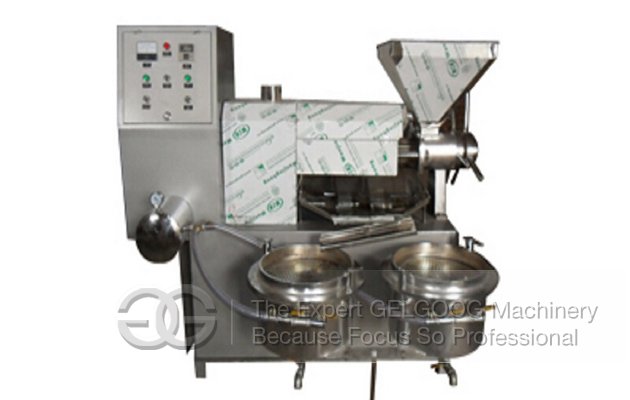

Large Capacity Automatic Oil Press Machine
Large Capacity Automatic Oil Press Machine
- MOQ:1
- Brand:GELGOOG MACHINERY
- Certification: CE
- Supply Ability: 100
- PAY METHOD: WEST UNION L/C T/T CASH
- Warranty Time: 12 Months
- LOADING PORT: Qingdao port
- Country Of Origin: China
Application
Suitable for rapeseed, peanut, soybean, sunflower, rapeseed, sesame,etc.
Main Feature
All working processes are controlled by the controlling panel.
Features
Suitable for rapeseed, peanut, soybean, sunflower, rapeseed, sesame, sesame seed, tea seed, walnut, olive, corn germ, rice bran, tea seed, safflower seed, seeds of hippophae rhamnoides and so on.
Oil press machine is to separate the oil from oil bearing materials by the pressing power which comes from the change of chamber volume, drive from screw worm, resistance of curve teeth at press rings and extrusion friction between oil materials. Under the big pressure created in press chamber, the oil can be discharged from gap of press bars and oil trough of press rings. Either big scale and small scale of oil press machine, they have similar theories in screw expeller pressing. Because the screw type oil press machine is mainly used by extrusion theory, so it is also called as oil extruder or oil extrusion process.
Oil press machine is to separate the oil from oil bearing materials by the pressing power which comes from the change of chamber volume, drive from screw worm, resistance of curve teeth at press rings and extrusion friction between oil materials. Under the big pressure created in press chamber, the oil can be discharged from gap of press bars and oil trough of press rings. Either big scale and small scale of oil press machine, they have similar theories in screw expeller pressing. Because the screw type oil press machine is mainly used by extrusion theory, so it is also called as oil extruder or oil extrusion process.
Technical Data
| Model | GGYL-130A | GGYL-165A |
| Screw diameter | 130mm | 165mm |
| Capacity(t/24h) | 10-12 | 18-20 |
| Motor(KW) | 15 | 22 |
| Weight (kg) | 1700 | 3500 |
|
Size (mm) |
2350*840*1850 |
2600*1920*2300 |
FAQ
1.Q:can I get some samples?and what is the delivery time?
A:we are honored to sent you samples for quality check.for delivery time,10-20 days after confirm the sample order.
2.Q:do you have the products in stock?
A:Yes,we have some model products can supply to you.
3.Q:can I mix different modles in one container?
A:yes,different modles can be mixed in one container,but the quantity of each model should not be less than MOQ.
4.Q:how does your factory do regarding quality control?
A:Quality is priority,we always attach great importance to quality control from the very beginning to the end of the production,every product will be fully assembled and carefully tested before it's packed for shipment.
